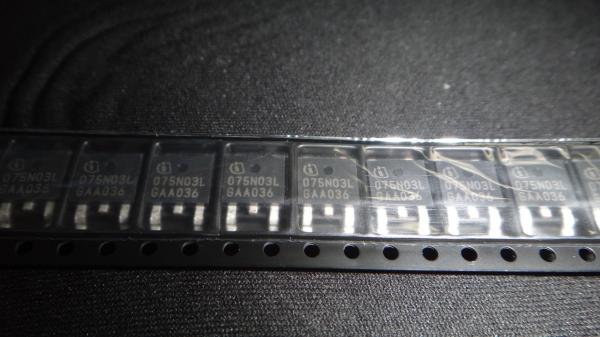

    IPD075N03LG Transistor N Channel Mosfet TO-252

    Ask Lasest Price
    Brand Name : INFINEON
    Model Number : IPD075N03LG
    Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 57830pcs
    Delivery Time : 3
    Price : Negotiate
    • Product Details
    • Company Profile

    IPD075N03LG Transistor N Channel Mosfet TO-252

    ISO9001.pdf

    IPD075N03LG is an N-channel MOSFET transistor. The following are the applications, conclusions, and parameters of this transistor:
    Application:
    Power switch and DC-DC converter
    Motor driver
    Automotive electronic equipment
    Industrial automation control system
    Conclusion:
    Efficient N-channel MOSFET transistor
    Low conduction resistance and leakage current
    High temperature working ability
    Low reverse leakage current
    Parameters:
    VDS (maximum drain source voltage): 30 V
    ID (maximum drain current): 75 A
    RDS (on): 5.5 m Ω
    Qg (total gate charge): 180 nC
    VGS (maximum gate source voltage): ± 20 V
    Ciss (input capacitance): 3550 pF
    Coss (output capacitance): 1120 pF
    Crss (feedback capacitance): 180 pF
    Tj (junction temperature): -55 to 175 ° C
    Package: TO-252-3

    Product Technical Specifications
    EU RoHSCompliant with Exemption
    ECCN (US)EAR99
    Part StatusActive
    HTS8541.29.00.95
    SVHCYes
    SVHC Exceeds ThresholdYes
    AutomotiveNo
    PPAPNo
    Product CategoryPower MOSFET
    ConfigurationSingle
    Process TechnologyOptiMOS
    Channel ModeEnhancement
    Channel TypeN
    Number of Elements per Chip1
    Maximum Drain Source Voltage (V)30
    Maximum Gate Source Voltage (V)±20
    Maximum Gate Threshold Voltage (V)2.2
    Maximum Continuous Drain Current (A)50
    Maximum Drain Source Resistance (mOhm)7.5@10V
    Typical Gate Charge @ Vgs (nC)8.7@4.5V|18@10V
    Typical Gate Charge @ 10V (nC)18
    Typical Input Capacitance @ Vds (pF)1400@15V
    Maximum Power Dissipation (mW)47000
    Typical Fall Time (ns)2.8
    Typical Rise Time (ns)3.6
    Typical Turn-Off Delay Time (ns)17
    Typical Turn-On Delay Time (ns)4.3
    Minimum Operating Temperature (°C)-55
    Maximum Operating Temperature (°C)175
    PackagingTape and Reel
    MountingSurface Mount
    Package Height2.3
    Package Width6.22
    Package Length6.5
    PCB changed2
    TabTab
    Standard Package NameTO-252
    Supplier PackageDPAK
    Pin Count3
